R&R
Georgian bar
Rottler und Rüdiger
In keeping the motto "Upgrading your glass", we have been your competent partner for the insulating glass industry for four decades now.
We offer production systems for spacer bar and Georgian bar processing, are a system partner for Georgian bars and a reliable supplier of high-quality consumables for all aspects of flat glass processing.
QUAD ROBOT
The Quad Robot is a vertical mounting machine for fixing rungs grilles into spacer frames from R&R glass. With the quad robot, the state-of-the-art rungs are assembled according to the latest technology: fully automatic screwed, unrivalled fast and with the highest precision.
The screwdriving technology is the most stable edge connection for rungs grilles that is available. Up to 1000 connections/hrs that are automatically controlled not only streamline the rungs assembly, but also reduce the complaint rate to an extent not considered possible.
Advantages
- More than 1000 individual connections per hour
- Vertical automatic fastening device for practically all glazing bar systems
- No set-up time for changing glazing bars or spacer frames
- Screw hopper for 20,000 screws
- Also suitable for all decorative glazing bar systems

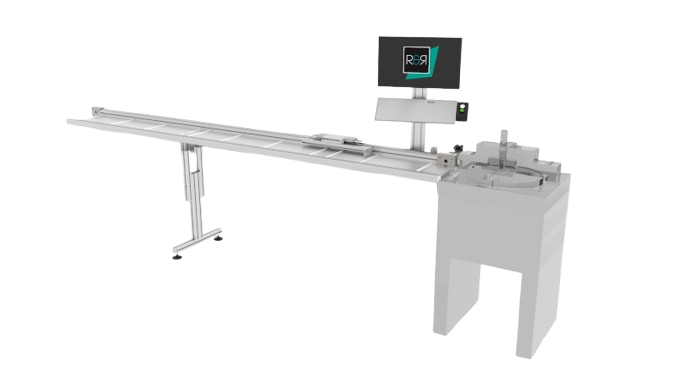

Georgian bar saw
Infinitely adjustable from 90-45° or 90-180°
Easy handling with the spring assisted hub
Pneumatic clamp directly over the cut
Clamp can be adjusted away for cuts after a break
Virtually burr-free cutting due to the special saw blade
Wider cut allowing for simultaneous cutting of various profiles
GEORGIAN BAR MILLING MACHINE HRF-MZ
With the HRF-MZ you can mill up to 10 Georgian bars of one geometry at the same time. Thanks to integrated pre-cutting, Georgian bars can be processed in one step.
For smaller quantities we have our HRF without pre-cutting in our programme, which can be optimally supplemented by our mini-cutting saw MKS.
Georgian Bar Drilling
For the R&R crossbar connection, a hole for the connecting pin is necessary in the continuous Georgian bar. We have developed special drilling jigs for this purpose. In these double drilling jigs, the Georgian bars are first clamped centrally and then precisely drilled on the lateral wall of the Georgian bar profile. Only precisely aligned holes in the muntin profile result in a perfect Georgian bar cross.
AKT Table
The R&R range of staple tables feature a 2000mm x 1000mm working space, with rail system & 2 carriages, 2 air pressure pistols, 5 aluminium fixing plates, for working Georgian widths of 8mm - 45mm.
Georgian Bar Bending
Bending machine with special plastic rollers for glazing bar profiles
Roller sets are cut to accommodate the profiles used
Finished coated bars can be bent
Electronic positioning of the axes with the storage unit
Drilling
For the R&R crossbar connection, a hole for the connecting pin is necessary in the continuous Georgian bar. We have developed special drilling jigs for this purpose. In these double drilling jigs, the Georgian bars are first clamped centrally and then precisely drilled on the lateral wall of the Georgian bar profile. Only precisely aligned holes in the muntin profile result in a perfect Georgian bar cross.

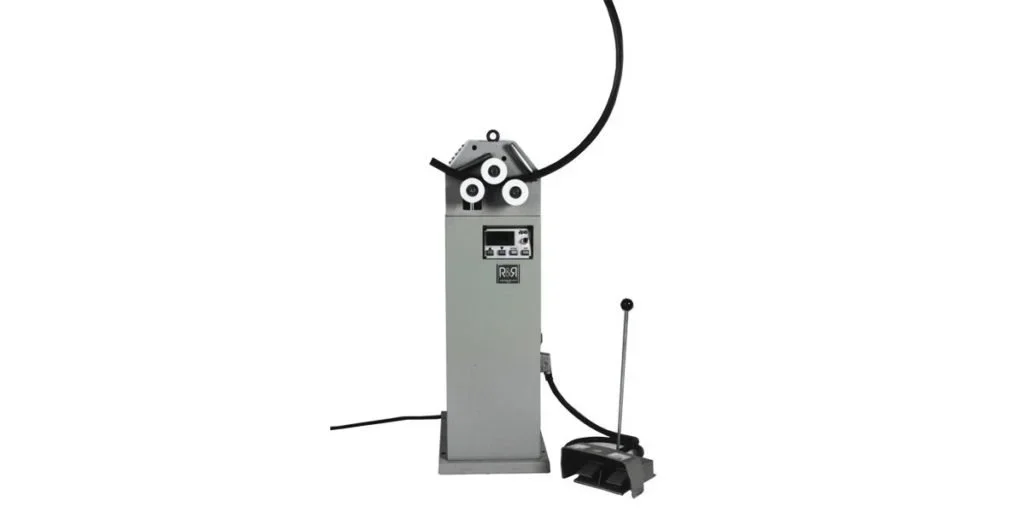

Bending Machine SB
Curved Georgian bars are part of your daily business? Then we have exactly the necessary machine in our range!
Bending machine with special plastic rollers for glazing bar profiles
Roller sets are cut to accommodate the profiles used
Finished coated bars can be bent
Electronic positioning of the axes with the storage unit

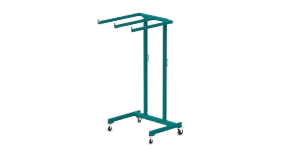

Transporting
Whether standing or hanging. We move your spacer frames, Georgian bars and prepared components securely and efficiently within your production. This not only saves time and money, but also spares the nerves of your employees.
